5A06 H18 Aluminum veneer

5A06 H18 Aluminum veneer refers to a building decoration material that is processed by chrome treatment and then fluorocarbon spraying technology. Fluorocarbon coatings mainly refer to polyvinylidene fluoride resin (KANAR500), which is divided into three types: primer, topcoat, and varnish.The spraying process is generally divided into two coats, three coats, or four coats. Fluorocarbon coatings have excellent corrosion resistance and weather resistance, which can resist acid rain, salt mist, and various air pollutants. They have excellent cold and hot resistance, can withstand strong ultraviolet radiation, and can maintain long-term color fastness and powder resistance, with a long service life.

Category：

Aluminium veneer

WhatsApp : +86-17351678125

Email : rhj@rhjaluminum.com

Message

Product Description

5A06 H18 Aluminum veneer is Al-Mg series anti-rust aluminum, 5A06 H18 Aluminum veneer has high strength and corrosion stability, good plasticity in annealed and extruded state, weld air tightness and weld seam welded by argon arc welding The plasticity is acceptable, the welded joint strength of gas welding and spot welding is 90-95% of the matrix strength, and the machinability is good.5A06 H18 Aluminum veneer is a high-magnesium alloy with good strength, corrosion resistance and machinability among non-heat-treatable alloys. The surface is beautiful after anodizing. Arc welding performance is good. The main alloying element in 5A06 H18 Aluminum veneer is magnesium, which has good corrosion resistance and weldability, as well as medium strength.5A06 H18 Aluminum veneer belongs to the Al-Mg series alloy, which has a wide range of applications, especially the construction industry is inseparable from this alloy, and is the most promising alloy. Good corrosion resistance, excellent weldability, good cold workability, and medium strength.

AL-MG series alloy is the most widely used anti-rust aluminum. This alloy has high strength, especially fatigue resistance: high plasticity and corrosion resistance, and cannot be strengthened by heat treatment. Plasticity in semi-cold work hardening Still good, low plasticity during cold work hardening, good corrosion resistance, good weldability, poor machinability, and can be polished. Mainly used for low-load parts that require high plasticity and good weldability, working in liquid or gaseous media, such as fuel tanks, gasoline or lubricating oil conduits, various liquid containers and other small-load parts made by deep drawing: The wire is used to make rivets.

Excellent corrosion resistance makes 5A06 H18 Aluminum veneer widely used such as aerospace, military industry and automobile, aircraft welding parts, subway light rail, pressure vessels requiring strict fire protection (such as liquid tank cars, refrigerated vehicles, refrigerated containers), refrigeration devices, TV towers, drilling Equipment, transportation equipment, missile parts, fixtures, armor, etc.

Chemical composition:Si:0.4;Fe:0.4;Cu:0.1;Mn:0.5-0.8;Mg:5.8-6.8;Zn:0.2;Ti:0.02-0.1

Mechanical components:Tensile strength Rm/Mpa:305;Yield strength Rp0.2/Mpa:145:Elongation/%:10

PRODUCT PARAMETER

Product name	Anodized aluminum plate
Alloy	1050/1060/1070/1100/2A06/2A12/3003/3004/3105/4A01/5A06/5052/5056/5083/5754/5A06/6061/6063/6201/7005/7075/
Temper	O,H12,H14,H16 H18,H19,H22,H24 H26,H28,H32,H34 H36,H38
width	100mm-2650mm
length	500mm-16000mm or customized
Type	OEM/ODM
Processing Service	Bending, Welding, Punching, Cutting
Standard	ASTM，AISI，JIS，GB， DIN，EN
Certificates	ISO, SGS，BV
MOQ	1 TON
Delivery time	customize: 15-20 days, Ready stock: 5-7days
Packaging	Seaworthy Wooden pallet ,Wooden case,Aluminum plate case
Payment Terms	T/T,L/C,RMB,Euro

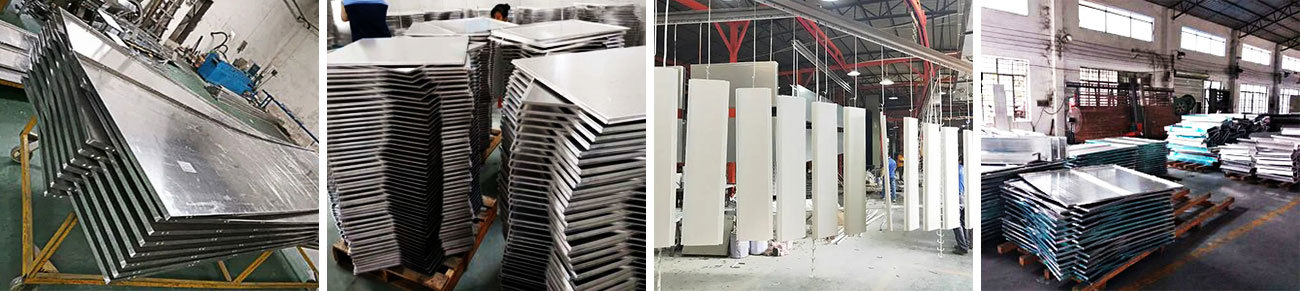

Warehouse storage

The company produces and sells aluminum plates, aluminum coils, aluminum discs, patterned aluminum plates, alloy aluminum plates, mirror aluminum plates, medium thick aluminum plates, corrugated aluminum plates, aluminum strips, aluminum foils, aluminum tubes, aluminum rods, and other products for the 1-8 series. It has over 5000 tons of stock available annually.

Packaging and shipping

For the packaging of goods, we have always insisted on using standard packaging methods to package and transport the goods to avoid damage to the goods during transportation to the greatest extent. In this era of developed transportation, our products have been widely sold to Europe , Middle East, Southeast Asia, Australia and other places.

Customer communication

Based on the business philosophy of survival by quality and development by reputation, the company adheres to the business philosophy of "integrity, pragmatism, innovation and development", has the courage to challenge, constantly innovates in the competition, actively explores foreign markets, and has rich experience in import and export , Warmly welcome new and old customers at home and abroad to visit and negotiate!

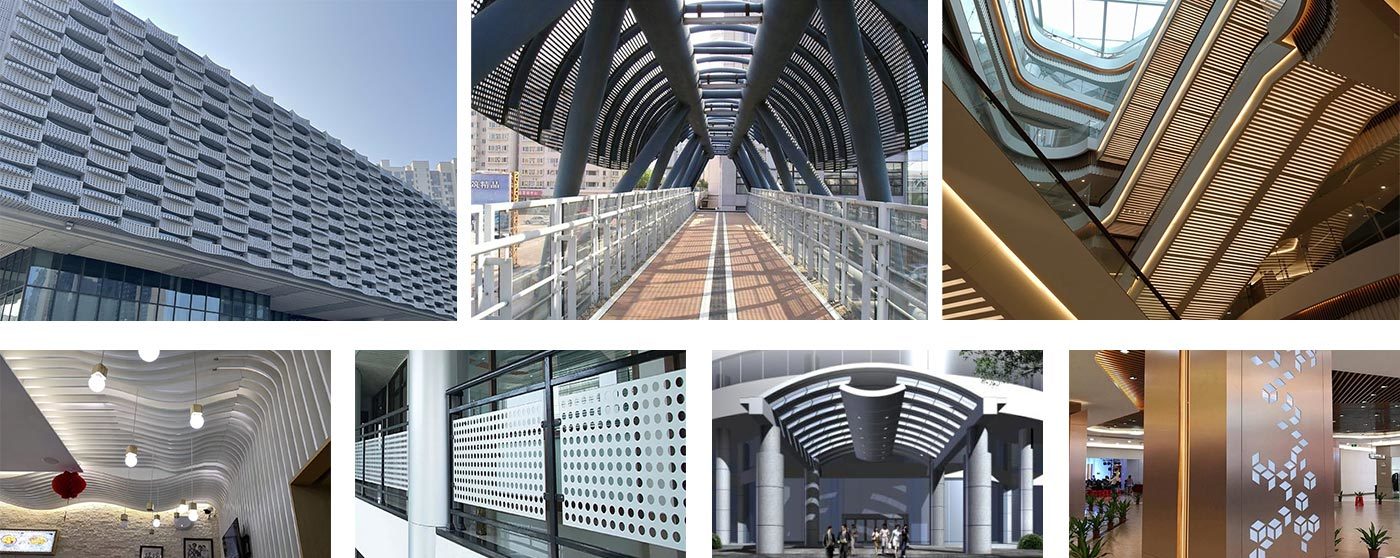

Application area

Our company has a wide range of products, excellent quality, reasonable price and stylish design, which are widely used in printing plate making, transportation, containers, building decoration, aerospace, high-speed rail, intercity railway, machinery, electrical appliances, electronic communications, petrochemical, energy And other fields and other industries, but we still make unremitting efforts to create national brands and international brands. All employees of the company uphold the style of smart businessmen and the spirit of integrity, and are willing to cooperate with you for common development.
