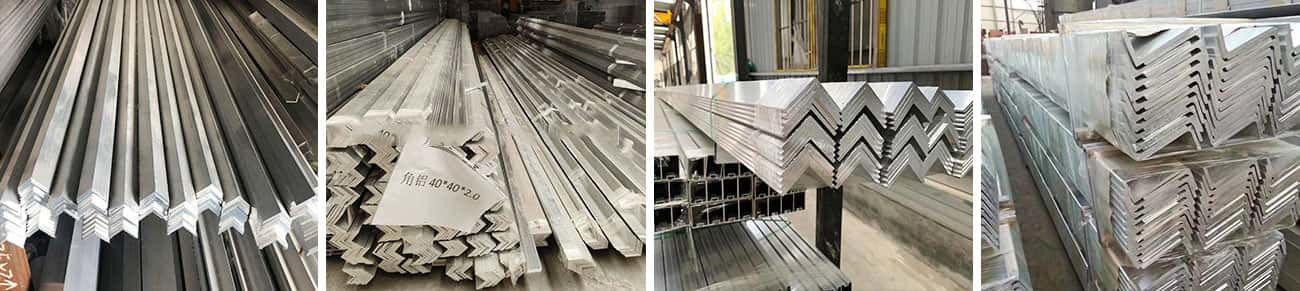

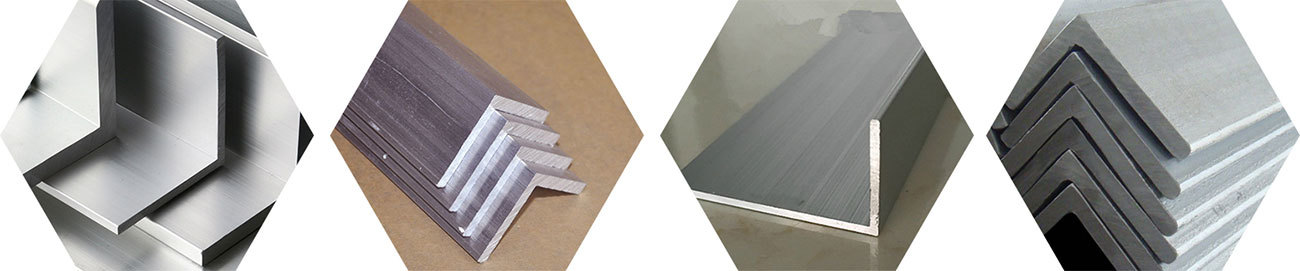

7A04 T651 Angle aluminum
Category：
Angle aluminum
Message
Product Description
PRODUCT DESCRIPTION
7A04 T651 Angle aluminum belongs to Al-Zn-Mg-Cu super-high-strength aluminum alloy, also known as super-duralumin , which is quite mature, long-term and widely used alloy in super-duralumin. High strength, good heat treatment strengthening effect, medium plasticity in annealed and new quenched states; different from duralumin , the corrosion resistance in the artificial aging state is better than that in the natural aging state, and the natural aging process is slow, it needs to go through 3 The peak of age hardening can only be reached after one month, so 7A04 T651 Angle aluminum is used in the state of quenching and artificial aging. The disadvantage is that the structure stability is not high, the low frequency fatigue strength is low, and there is a tendency of stress corrosion cracking. The alloy has good spot weldability , poor gas welding, good machinability after heat treatment, but poor machinability after annealing.
7A04 T651 Angle aluminum commonly used in aircraft skins, screws, and stressed components such as girder stringers, bulkheads, wing ribs, landing gear,etc
Chemical composition: silicon Si: 0.50; iron Fe: 0.50; copper Cu: 1.4-2.0; manganese Mn: 0.20-0.6; magnesium Mg: 1.8-2.8; chromium Cr: 0.10-0.25; zinc Zn: 5.0-7.0; titanium Ti : 0.10; aluminum Al: balance
Mechanical properties: tensile strength σb (MPa): ≥530; elongation stress σp0.2 (MPa): ≥400; elongation δ10 (%): ≥5
PRODUCT PARAMETER
|
Product name |
Angle aluminum |
|
Alloy |
1050/1060/1070/1100/2A06/2A12/3003/3004/3105/4A01/5A06/5052/5056/5083/5754/5A06/6061/6063/6201/7005/7075/ |
|
Temper |
H111/H112/H12/H16/H18/H24/H32/H14/T3/T4/T5/T6/T8 |
|
width |
10mm-400mm |
|
length |
1000mm-12000mm or customized |
|
Type |
OEM/ODM |
|
Processing Service |
Bending, Decoiling, Welding, Punching, Cutting |
|
Standard |
ASTM，AISI，JIS，GB， DIN，EN |
|
Certificates |
ISO, SGS，BV |
|
MOQ |
1 TON |
|
Delivery time |
Future Goods: 25-35 days, Ready stock: 7-10days |
|
Packaging |
Seaworthy Wooden pallet ,Wooden case,Aluminum plate case |
|
Application |
Transportation, construction, machinery and equipment, decoration, industrialization, etc |
|
Payment Terms |
30% T/T in advance as deposit,70% balance against the B/L copy |
Warehouse storage
The company produces and sells aluminum plates, aluminum coils, aluminum discs, patterned aluminum plates, alloy aluminum plates, mirror aluminum plates, medium thick aluminum plates, corrugated aluminum plates, aluminum strips, aluminum foils, aluminum tubes, aluminum rods, and other products for the 1-8 series. It has over 5000 tons of stock available annually.
Packaging and shipping
For the packaging of goods, we have always insisted on using standard packaging methods to package and transport the goods to avoid damage to the goods during transportation to the greatest extent. In this era of developed transportation, our products have been widely sold to Europe , Middle East, Southeast Asia, Australia and other places.
Customer communication
Based on the business philosophy of survival by quality and development by reputation, the company adheres to the business philosophy of "integrity, pragmatism, innovation and development", has the courage to challenge, constantly innovates in the competition, actively explores foreign markets, and has rich experience in import and export , Warmly welcome new and old customers at home and abroad to visit and negotiate!

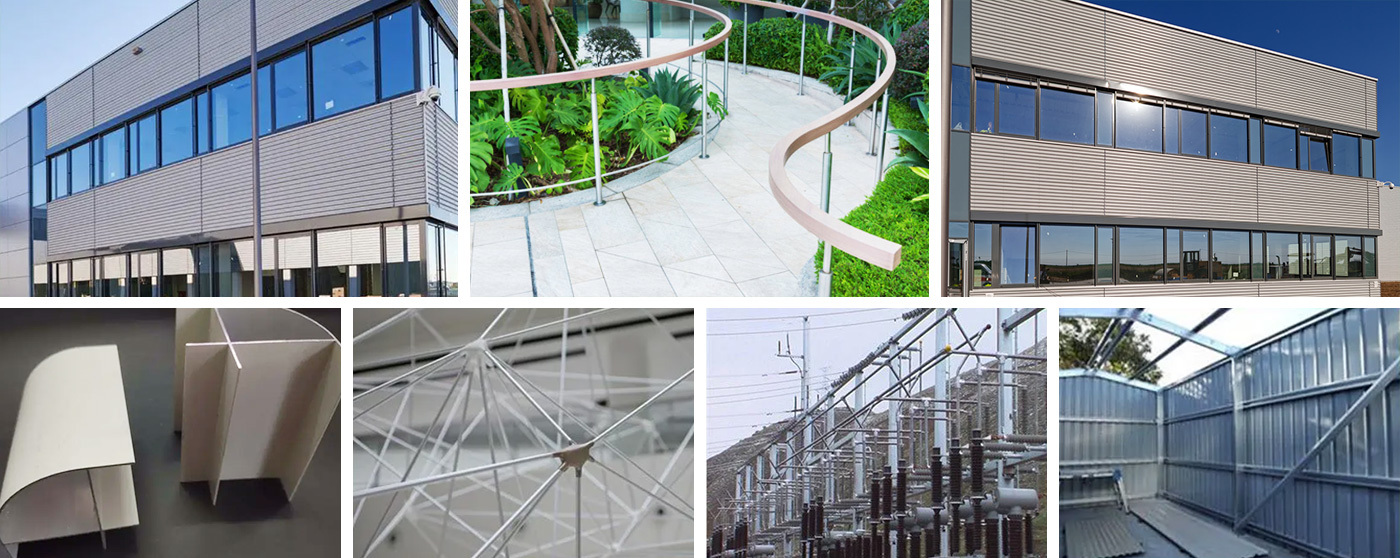

Application area
Our company has a wide range of products, excellent quality, reasonable price and stylish design, which are widely used in printing plate making, transportation, containers, building decoration, aerospace, high-speed rail, intercity railway, machinery, electrical appliances, electronic communications, petrochemical, energy And other fields and other industries, but we still make unremitting efforts to create national brands and international brands. All employees of the company uphold the style of smart businessmen and the spirit of integrity, and are willing to cooperate with you for common development.
Honor
No data
